mobile measurement systems

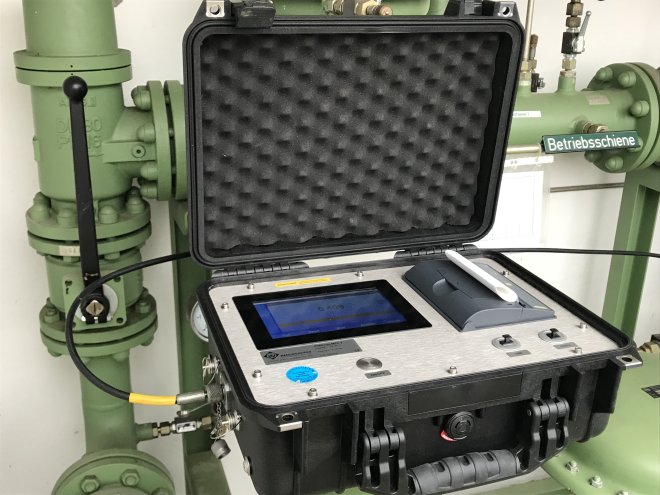

MPK II with built-in printer
- Robust, waterproof test case
General parameters
- Operation via touch display or PC graphic display TFT 7, 0" capacitive
- Recording of up to 8 pressure, temperature and pulse signals
- Sampling rates 1s to 1h (ms sampling possible)
- Resolution up to 16bit
- Accuracy (pressure) up to 0.05% F.S.
- Accuracy (Temp.) up to +/-0,1 K
- Storage of up to 1. 000 000 measured values
- Data backup of individual tests on USB stick
- Graphical logging of the test using the integrated thermal printer
- Storage and parameterization of important test parameters directly at the data logger

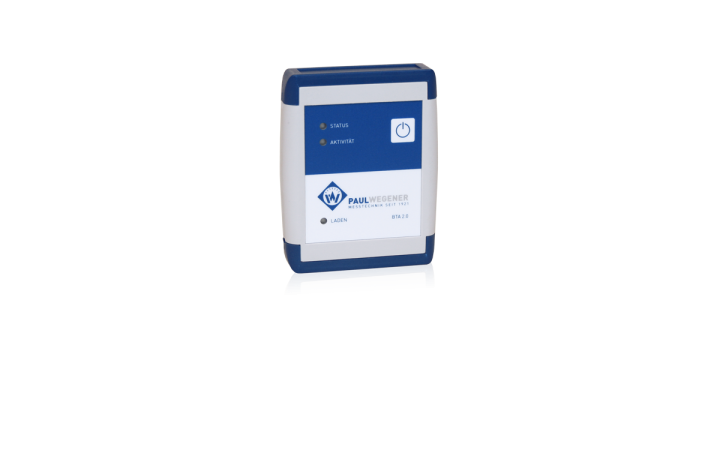

- Bluetooth module
- Degree of protection IP67
- Supply with integrated Li-battery
Supported test specifications
sewage
- Sewer manhole and wastewater pipe in accordance with DIN EN 1610
- Light liquid separator in accordance with DIN 1999 -100
- Fat separator in accordance with DIN 4040- 100
- Supports air, water and duct tests
- Automatic test evaluation
water
- Water pipes – in accordance with W400/2
- Contraction method
- Normal method
- Accelerated normal method
- Determination of test parameters in advance and compiling test protocols
gas
- in accordance with new G469
- High-precision pressure transducer up to 50 bar with 1 mbar resolution
- Data logger supports drain test
- Other test protocols possible on demand

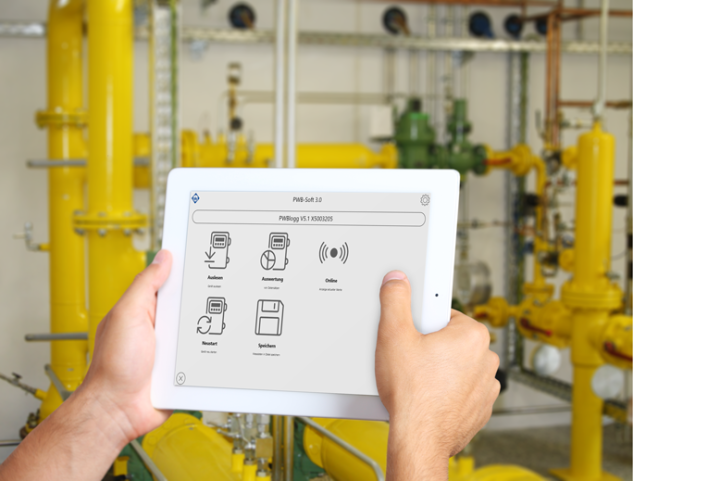

With the PWB Soft 3.0 Android App
you can transfer measurements wirelessly directly to your smartphone or tablet. And all this right on the construction site! Send the measurements directly by email.
Software
PWB Soft 3.0 RLB
For the preparation of examinations and Parameterization of the logger Pre-determination and storage of Test parameters in the data logger Printout of test protocols in preparation of tests Partially automatic analysis and evaluation of tests
