mobile measurement systems

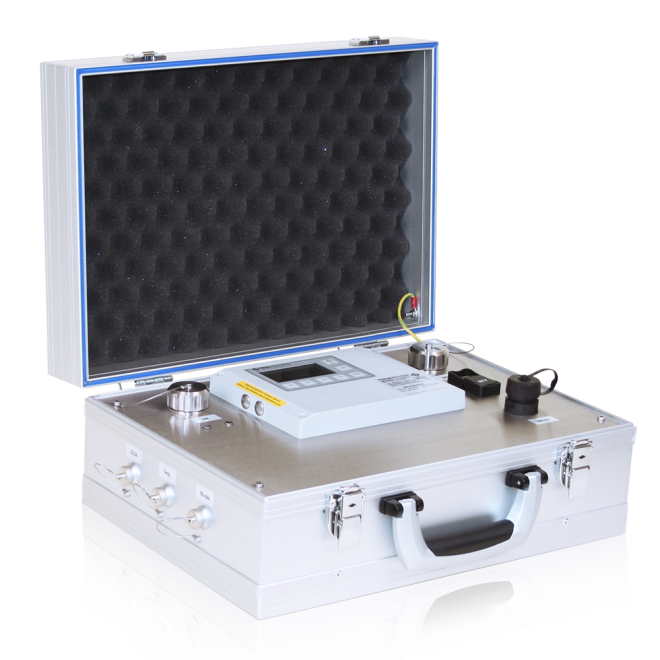

PWBlogg pressure test case
for explosive areas
Robust, waterproof Case in the version RLBK N7/TC-EX2/E
optional: SD card, data transfer via iModem and bluetooth
General parameters
- Operation by alphanumeric display (2×16 characters)
- Recording of up to 8 pressure, temperature and pulse signals
- Sample rates 1s to 1h (ms-sampling possible)
- Resolution up to 16 bit
- Accuracy (pressure) up to 0,05% of final value
- Accuracy (temperature) up to +/-0,1 K
- Storage of up to 1.000 000 readings
- Backup of individual test on optional memory card (up to 2 GB)
- Graphical logging of the test by built-in thermal printer
- Storage and parameterisation of important test parameters on data logger
- Degree of protection IP54
- Supply by built-in lithium storage battery
Technical specifications
- Case / Tec-Case (Aluminium)
- Abmessung / 39.5 x 28 x 16.5 cm (B x H x T)
- Degree of protection / IP 54
- weight / ca. 7 kg
- Power supply / Lithium-Ionen-battery 6.200 mAh
- Ex-Zone 2 (II 3G) / ExII 3G Ex nA [ic] IIB T4 EN 60079-0, 60079-11, 60079-15
- Data memory / internal / 0,5 MB (bis zu 0,25Mio MW)
- Data memory / external / 2 GB
- iModem GPRS, including aerial with 3m cable pluggable sim card Slot 2FF
