mobile measurement systems

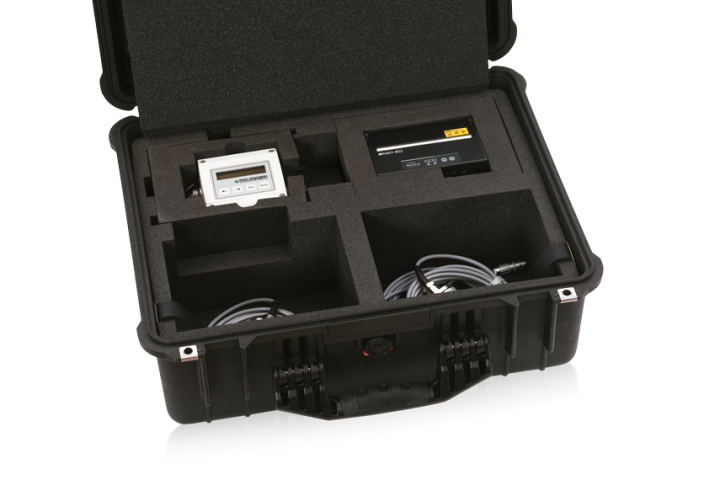

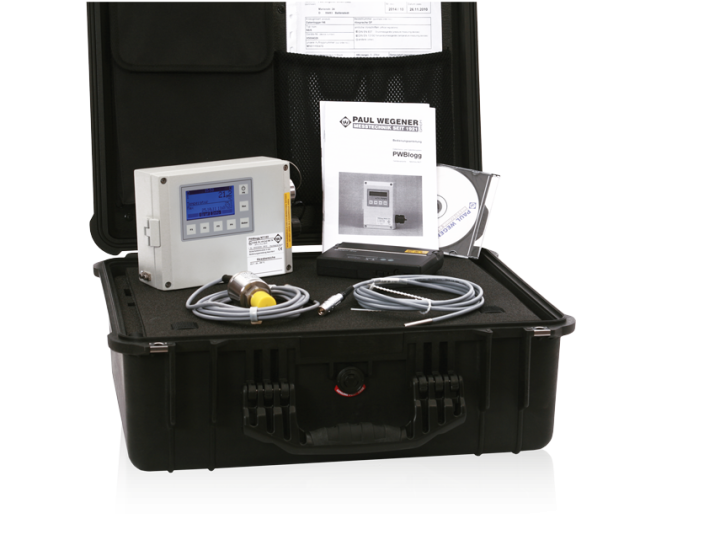

Pressure test set

Robust, waterproof Case in the variant: N7-180RLBK6 N6-6RLBK6 N6-5RLBK6

optional equipment: thermal printer, SD/MMC-card and bluetooth

General parameters

  • Operation by alphanumeric display (2×16 characters)
  • Recording of up to 8 pressure, temperature and pulse signals
  • Sample rates 1s to 1h (ms-sampling possible)
  • Resolution up to 16 bit
  • Accuracy (pressure) up to 0,05% of final value
  • Accuracy (temperature) up to +/-0,1 K
  • Storage of up to 1.000 000 readings
  • Backup of individual test on optional memory card (up to 2 GB)
  • Graphical logging of the test by built-in thermal printer
  • Storage and parameterisation of important test parameters on data logger
  • Degree of protection IP67
  • Supply by built-in lithium storage battery

Data sheet
